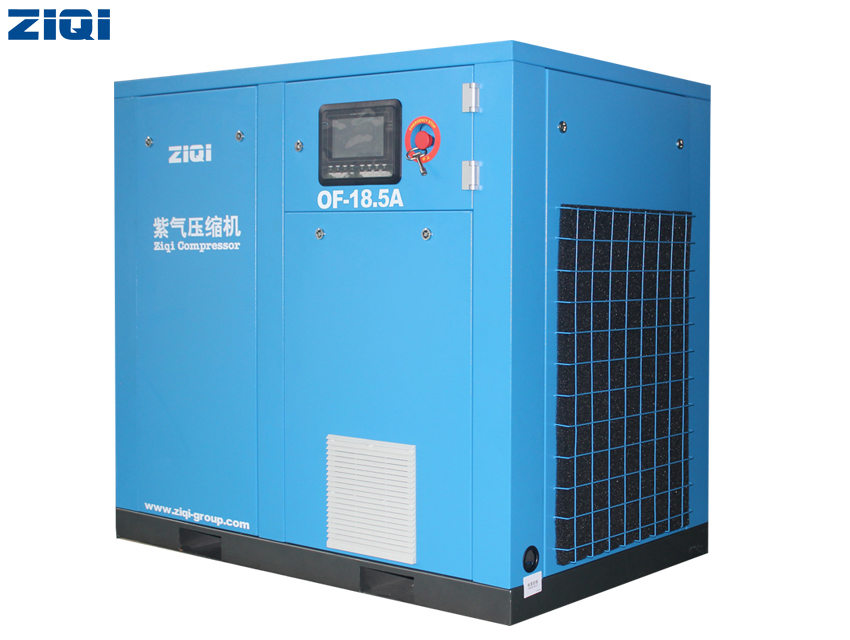

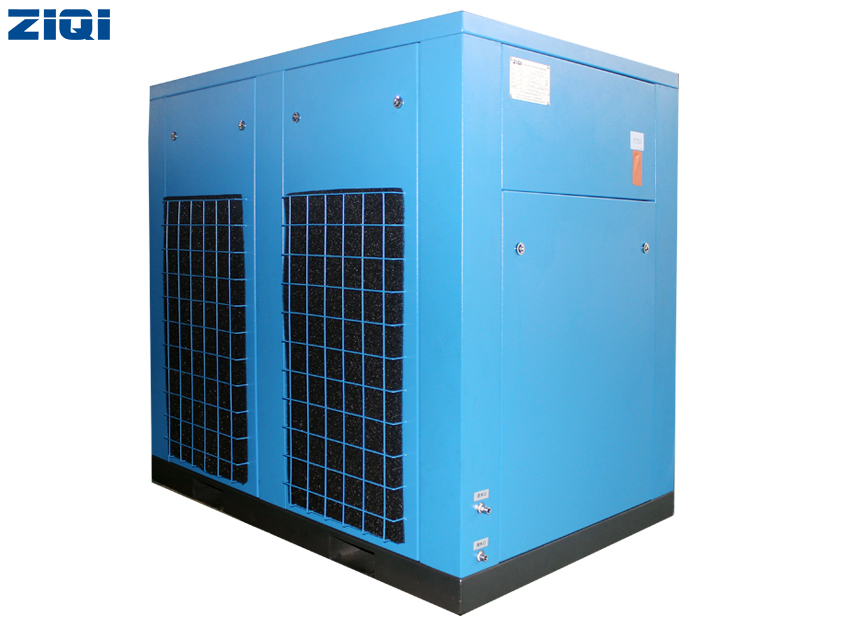

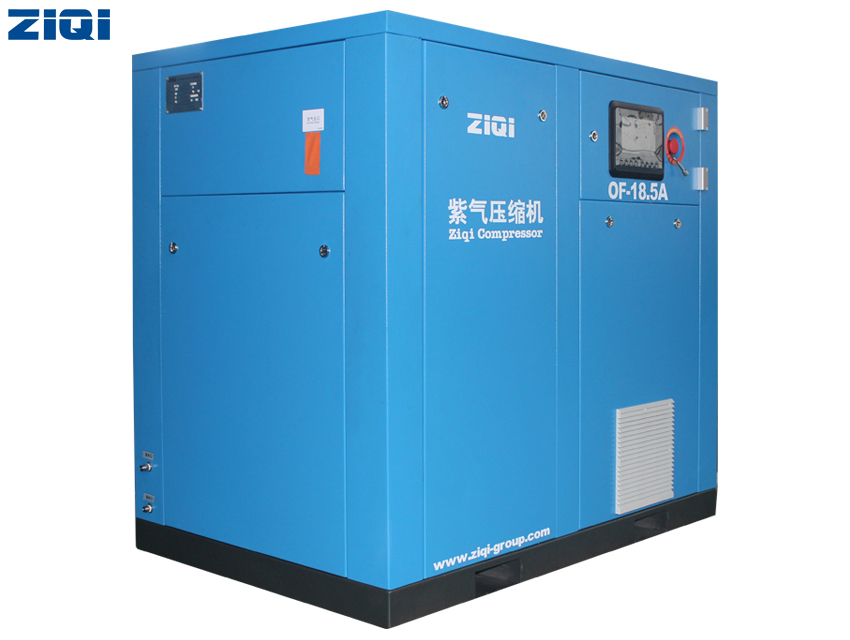

Standard VSD Air Compressor

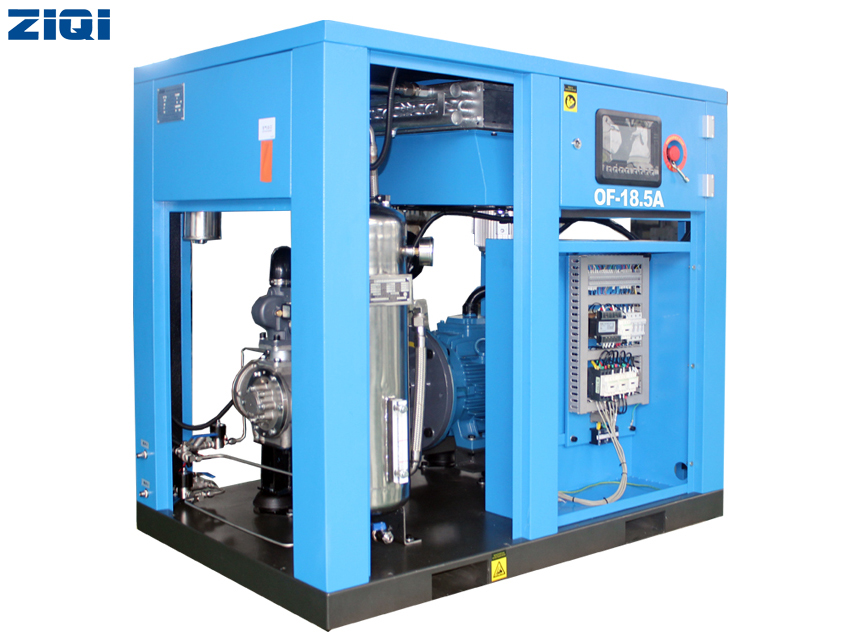

Air End

- High-quality stainless steel housing for oil-water-free compressor, with no risk of corrosion on the inside and outside of the head

- An air chamber is designed between the mechanical shaft seal and the bearing for high-performance grease bearing to keep the compression chamber clean, prevent the influence of water and vacuum pressure on the bearing in the compression chamber, and improve the reliability.

- The symmetry of the structure and the possibility of setting the reflow hole enable the radial and axial forces generated during the operation of the single-screw compressor to be completely balanced.Therefore, the rotor bearing load is very small, can operate for 50,000 hours;The star wheel made of resin material can be used for 25,000 to 30,000 hours, and the design life of the compressor is up to 300,000 hours.

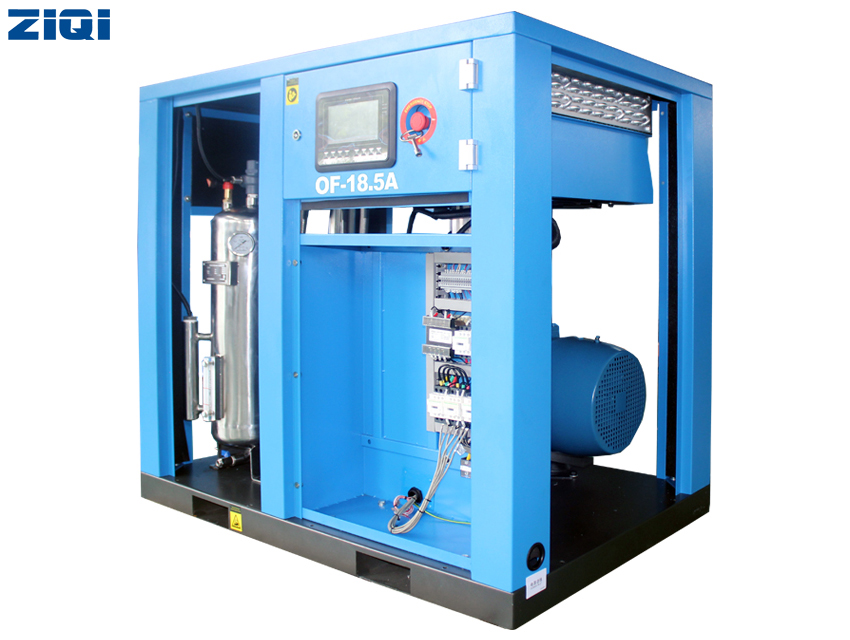

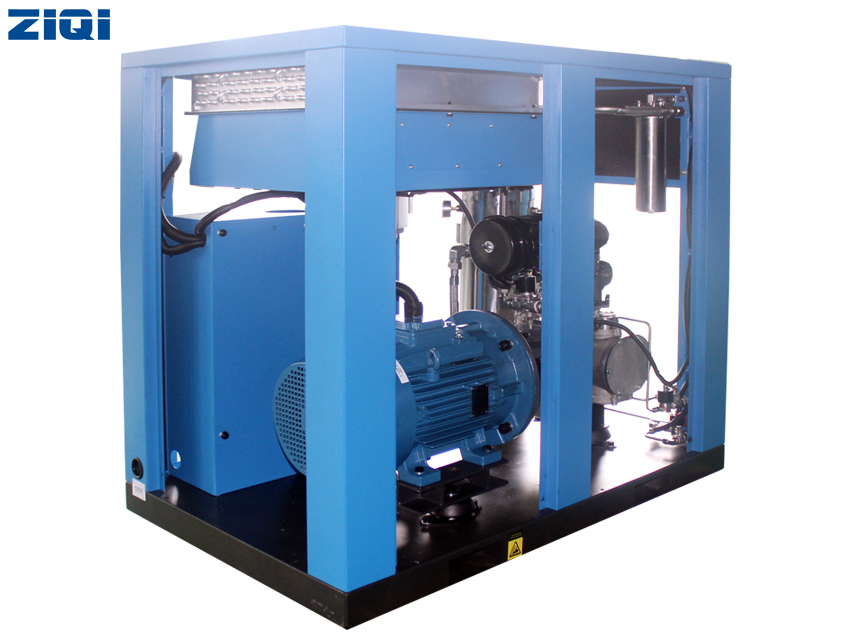

Motor

- The frame and end cover of the motor are made of cast iron to make the gap between the rotor and the spindle even;

- The design speed, torque and operating parameters all meet the load requirements of the compressor;

- SKF heavy-duty bearing is adopted in the design, which greatly increases the stability and service life of the motor;

- The high-efficiency motor adopts f-grade insulation and b-grade temperature rise, so it has a longer service life and can adapt to harsh environment;

Oil Vessel:

- Best materials, highest reliability.

- Stainless steel to prevent any corrosion.

- Unique spiral separation design to ensure water vapor separation.

Water Filters

- Stainless steel to prevent any corrosion

- Unique spinning design to ensure water vapor separation

- Three level induction alarm so that more water is discharged or less water is replenished through the system
